Citabria Pro
Aerobatic Parkflyer

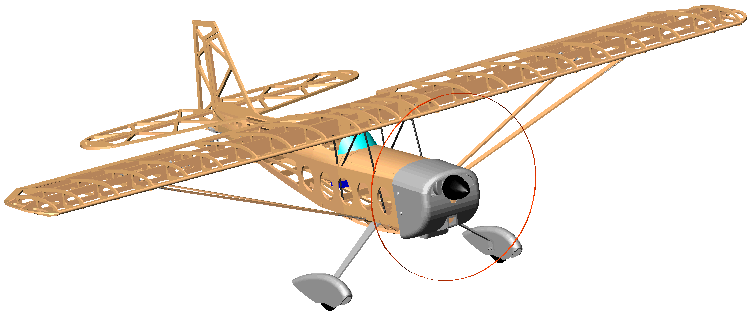

    The Citabria Pro is an aerobatic capable scale park flyer. She is a very nice match for the current crop of CD-ROM based micro outrunners. The laser cut sheet balsa and plywood parts provide a quick and precise building model. The kit includes everything required to complete the airframe except covering. Solite covering or an equivalent is recommended. This model is recommended for intermediate to advanced pilots.

Click to Enlarge

Length: 19 in.
Wingspan: 30.5 in.
Wing Area: 146 sq. in.
Flying Weight: 7.5 ~ 9.0 oz.
Wing Loading: 7.4 ~ 8.9 oz/sq. ft.
Functions: Aileron, Elevator, Rudder, Throttle

Click to Enlarge

    Kit Contents Include:
laser cut balsa & ply parts sheets balsa strip & sheet stock
screws & DuBro fittings carbon rod & piano wire
pre-bent & drilled aluminum landing gear wheels
vacuum formed cowl & wheel pants tail logo decals
24 page instruction manual (4mb .PDF) three full size plans sheets

Click to Enlarge

    Suggested Equipment: (not included in kit)
Aileron Servo: 4.4gr. or smaller (one)
Other Servos: 6.0 gr. or smaller (two)
Motor: LensRC 15 turn IPS mount motor, GoBrushless kit, or similar DIY CD-ROM
AXI 2204/54 mount available soon
Battery Pack: 7.4v or 11.1v, 800mAh or larger Lithium Polymer

Click here for video of the Citabria Pro model in flight (13mb .WMV)

Currently Unavailable

Click here for a brief history of the full size Citabria Pro
